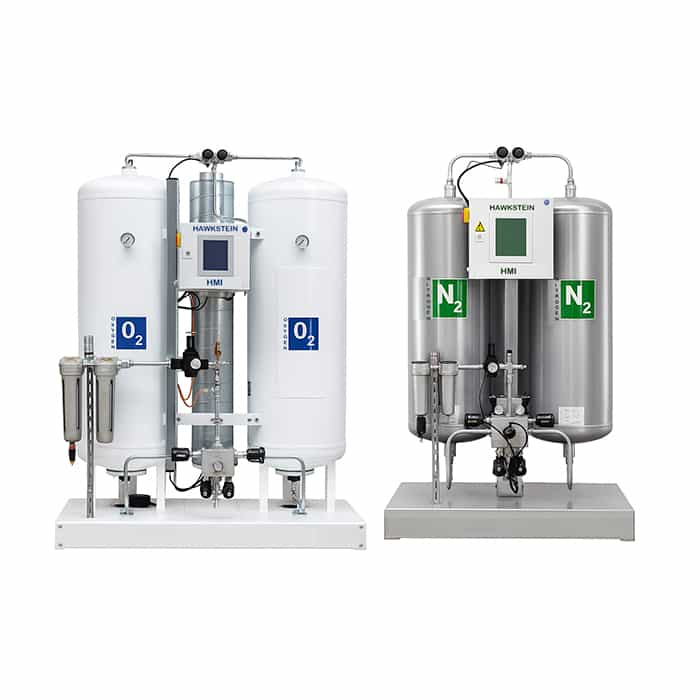

Oxygen Generation Plant

Technical Specifications

Feature	Professional Benchmark
Oxygen Purity	90% to 95% (93% ±3% Medical Grade Standard)
Oxygen Flow Range	1 Nm³/hr to 200 Nm³/hr (Expandable)
Oxygen Output Pressure	4 to 5 Bar (Direct usable pressure)
Dew Point	Up to -40°C (Dry Oxygen Output)
Technology	Pressure Swing Adsorption (PSA)
Adsorption Media	Zeolite Molecular Sieves (High Efficiency)
System Configuration	Twin Tower Automatic Cycling System
Operation Mode	Fully Automatic, 24/7 Continuous Supply
Control System	PLC-Based Smart Control with HMI
Noise Level	75 dB (Low Noise Industrial Design)
Power Requirement	3-Phase, 415V, 50Hz
Installation	Skid-Mounted, Plug & Play System
Backup Integration	Cylinder / Tank / UPS Compatible

Hawkstein Oxygen Generation Models

Model	Production Capacity (Nm³/hr)	Production Capacity (LPM)	Equivalent Cylinder Production (Per Day)
HTOxy-5	5 Nm³/hr	83 LPM	17
HTOxy10	10 Nm³/hr	167 LPM	34
HTOxy15	15 Nm³/hr	250 LPM	50
HTOxy20	20 Nm³/hr	333 LPM	68
HTOxy30	30 Nm³/hr	500 LPM	100
HTOxy40	40 Nm³/hr	667 LPM	135
HTOxy50	50 Nm³/hr	833 LPM	170
HTOxy60	60 Nm³/hr	1000 LPM	205

Why Hawkstein PSA Nitrogen Technology

On-Site Independence: Eliminate dependency on cylinders and bulk liquid nitrogen. Generate gas on demand with complete control over purity and flow.
Continuous Production Logic: Twin tower PSA design ensures uninterrupted nitrogen supply with automatic adsorption and regeneration cycles.
Cost Optimization: Reduce operational costs significantly by removing logistics, rental, and supply chain uncertainties.
Precision Gas Quality: Consistent purity with ultra-low oxygen levels (up to 1 ppm), suitable for critical industrial and aviation applications.
Energy Efficient Engineering: Optimized air consumption and smart cycling reduce overall energy footprint.

FAQs

A PSA Oxygen Plant produces oxygen from compressed air for hospitals, industries, and critical applications requiring continuous oxygen supply.

Typically 90% to 95% oxygen purity, compliant with medical standards.

No, it is fully automatic with PLC-based control and minimal operator intervention.

Yes, Hawkstein systems are designed based on flow, purity, and application requirements.

Yes, optional backup integration (cylinders/liquid tank) ensures zero downtime in critical applications.

Low maintenance with long-life zeolite molecular sieves and standard service intervals.

Strategic Applications

The Hawkstein PSA Oxygen Generation Plant is a critical infrastructure solution across healthcare and industrial sectors.

Healthcare & Hospitals

Central oxygen supply for ICU, OT, and general wards
Reliable oxygen source during emergencies and peak demand

Steel & Metal Processing

Oxygen enrichment in furnaces
Welding, cutting, and brazing applications

Water & Wastewater Treatment

Oxygen injection for aeration processes
Improves biological treatment efficiency

Chemical & Petrochemical Industry

Oxidation processes and reactors
Safe and controlled oxygen supply

Glass & Paper Industry

Furnace enrichment for higher efficiency
Pulp bleaching processes

Aquaculture & Fish Farming

Dissolved oxygen enhancement for better yield

Aerospace & Defense

Ground support oxygen systems
Emergency and backup oxygen supply

Why Oxygen Generation ?

Life-Critical Supply: Oxygen is an essential medical utility required continuously in hospitals and healthcare systems.
Operational Continuity: Ensures uninterrupted oxygen availability without reliance on external logistics.
Process Efficiency: Enhances combustion, oxidation, and treatment processes across industries.
Cost Stability: Converts recurring oxygen purchase costs into a controlled in-house generation model.
